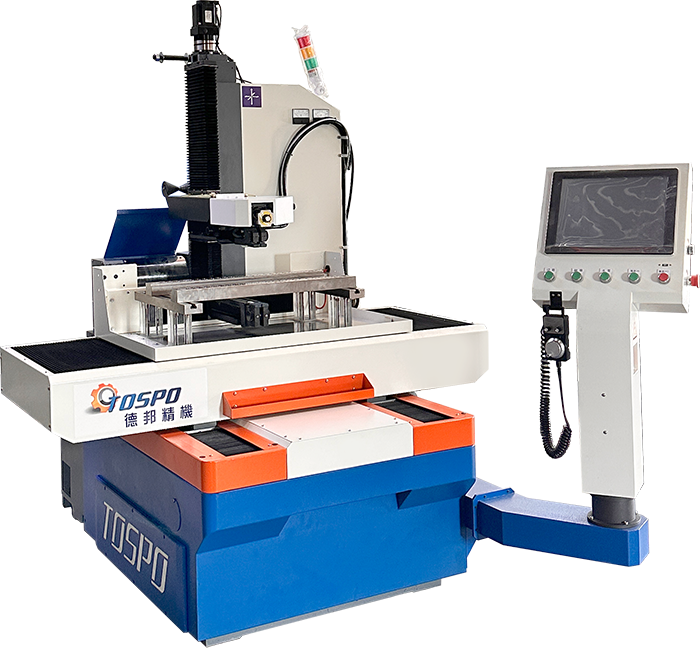

TD / TC Series | Servo Motor | Copper Wire EDM Machine

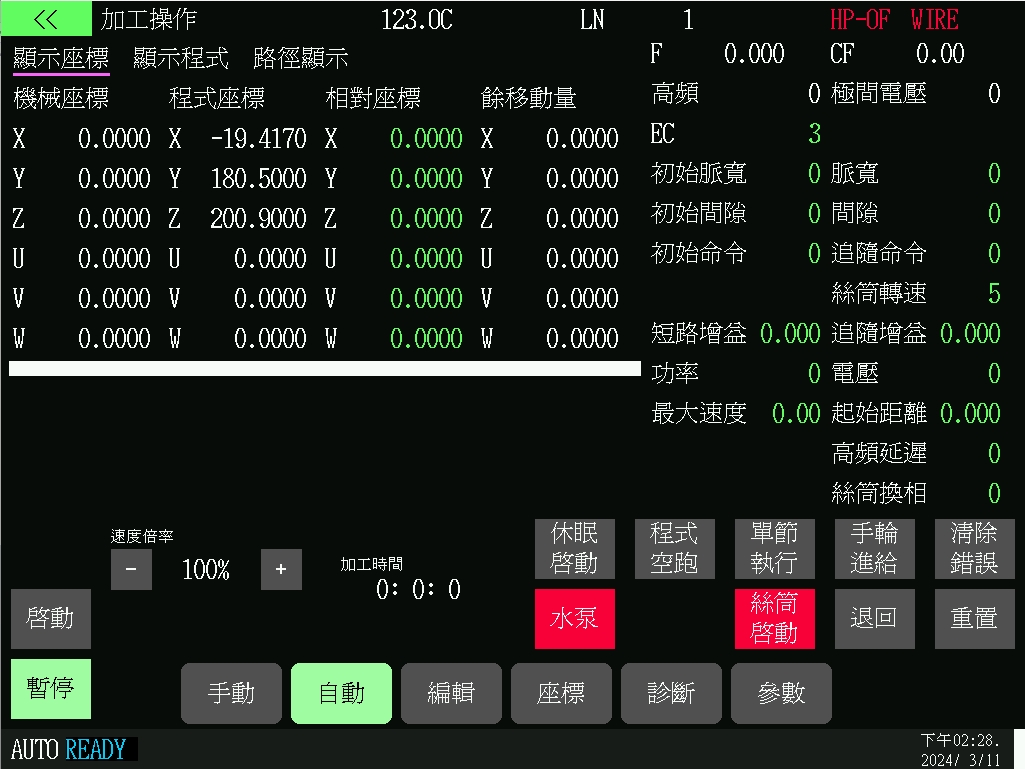

Model ID：TD ／ TC系列 ／ 伺服馬達 ／ 銅絲線切割機Touchscreen Interface Operation
Main System
• Graphic-based machining path simulation and testing
• Data transfer and documentation
• Supports additional G-code-based software for multiple machining methods
• Graphical-driven operation
Control System
• Multifunctional capability
• Compatible with various driver boards for fast wire cut and medium wire cut EDM
• Includes driver modules, high-frequency boards, control systems, and inverter control
• Expandable I/O ports available
Drive Module
• Connects directly to wire EDM machines
Key System Features
• Graphical-driven automatic programming — no need to write code; simply set machining parameters based on the part drawing to start machining
• Compatible with multiple wire EDM software and G-code machining
• Supports combined machining modes (continuous, segment, forward, reverse, etc.)
• Supports six-axis setup: X, Y, Z, U, V, W, A, B, C
• Real-time monitoring of six-axis machining status and preview
• Zoom in/out display of machining graphics during operation
• Multiple view angles: main view, left view, etc.
• Supports multi-pass cutting and taper machining with six-axis simultaneous control
• Easily handles upper and lower irregular surface machining and complex taper shapes
• Built-in automatic alarm function for job completion or system fault detection
